Reducing Threaded Tee Main Types

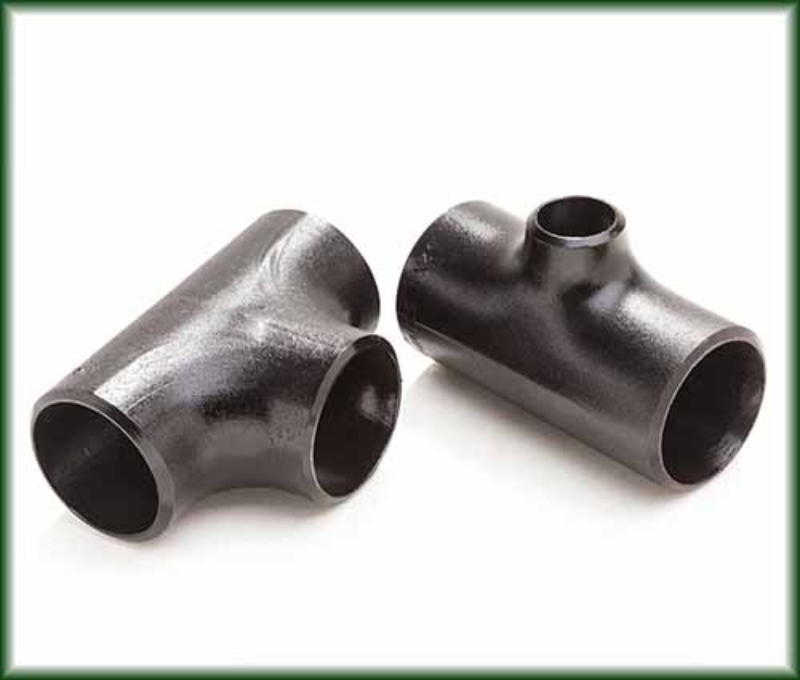

Carbon steel threaded reducing tee Value Added Services:
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

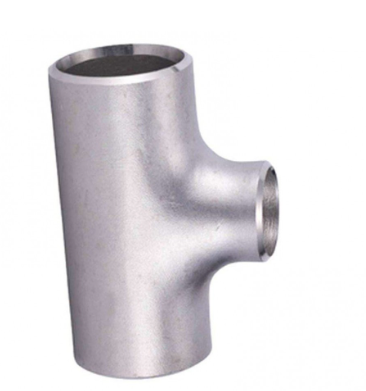

stainless steel threaded reducing tee Production Grades:
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
ASME B16.9 Tee is made in the B16.9 standard with seamless buttweld fittings ranging from ½ inches to 10 inches and welded buttweld fittings ranging from ½ inches to 48 inches in nominal bore sizes.
The ANSI B16.9 Reducing Tee is one type that reduces the diameter of the connected pipes. The tees connects three pipes at one location and there are different types of the tees. The SS Bw Equal Tee Fittings connect three pipes of equal sizes. There are different schedules of the tees corresponding to different pressure capacities. The ASME B16.9 Carbon Steel Equal Tee is made up of carbon steel materials. There are ferritic and austenitic types of stainless steels that are used for the production of the Stainless Steel Equal Tee Fitting as well.
Our butt weld reducing tees meet strict certifications required on current piping systems with qualities of high strength and SS corrosion resistance for use in various industries and environments.
Standard Carbon Steel Weld Reducing Tee
Seamless Butt Weld Fittings conform to ASTM A/SA234 WPB through 24”
Weld Fitting Dimensions conform to ANSI B16.9, B16.11, B16.28 through 24”
Weld Fitting Dimensions larger than 24” conform to MSS-SP-48
Carbon content not to exceed .25% maximum
Manufacturing Facilities are ISO Certified
Mill Test Reports available with every order.
We carry a full line of 304 & 316 stainless steel butt weld reducing tees.
Sizes: 1/2" - 36" +
Schedules: S/5s - XXH
Alloys: Aluminum - Carbon - Nickel Alloys - Stainless
For Use With: Air, Water
Temperature Range: -30° to 250° F
Specifications Met: UL Listed, FM Approved, ASTM A536

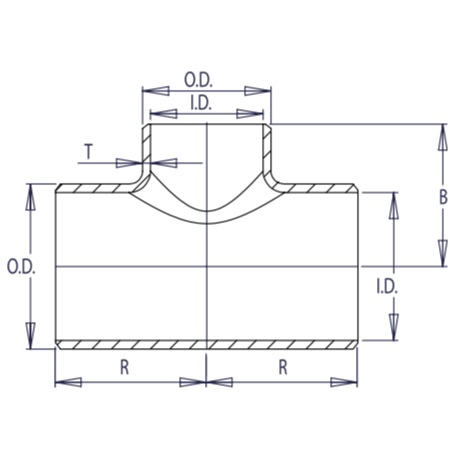

Reduction Tees are used to connect three pipe sections. The fitting has two parallel side ends with equal diameters as well as a reducing end that extends perpendicular from the midsection of the fitting.
Materials:
SS316 - A molybdenum stainless steel that provides excellent tensile.
creep and stress-rupture strengths at elevated temperatures.
Conforms to ASME B16.9 & ASTM A234 WPB.
For Use With: Air, Natural Gas, Oil, Steam, Water
Pressure Class: 150
Fabrication: Heat Treated
Specifications Met: ASTM A351
Flanges: Use Class 150 stainless steel
Pipe Nipples and Pipe: Use Schedule 40 stainless steel
