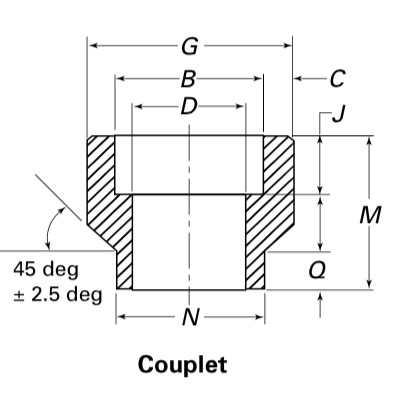

Socket weld couplet is similar to socket weld boss except that a straight length of weld ring is furnished. The one side is socket welding connection, and the other side features a beveled transition to a straight length of welding ring.
Material： ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
ASTM A105, A350 LF2, A106 Gr.B, A234 WPB, A312, A403

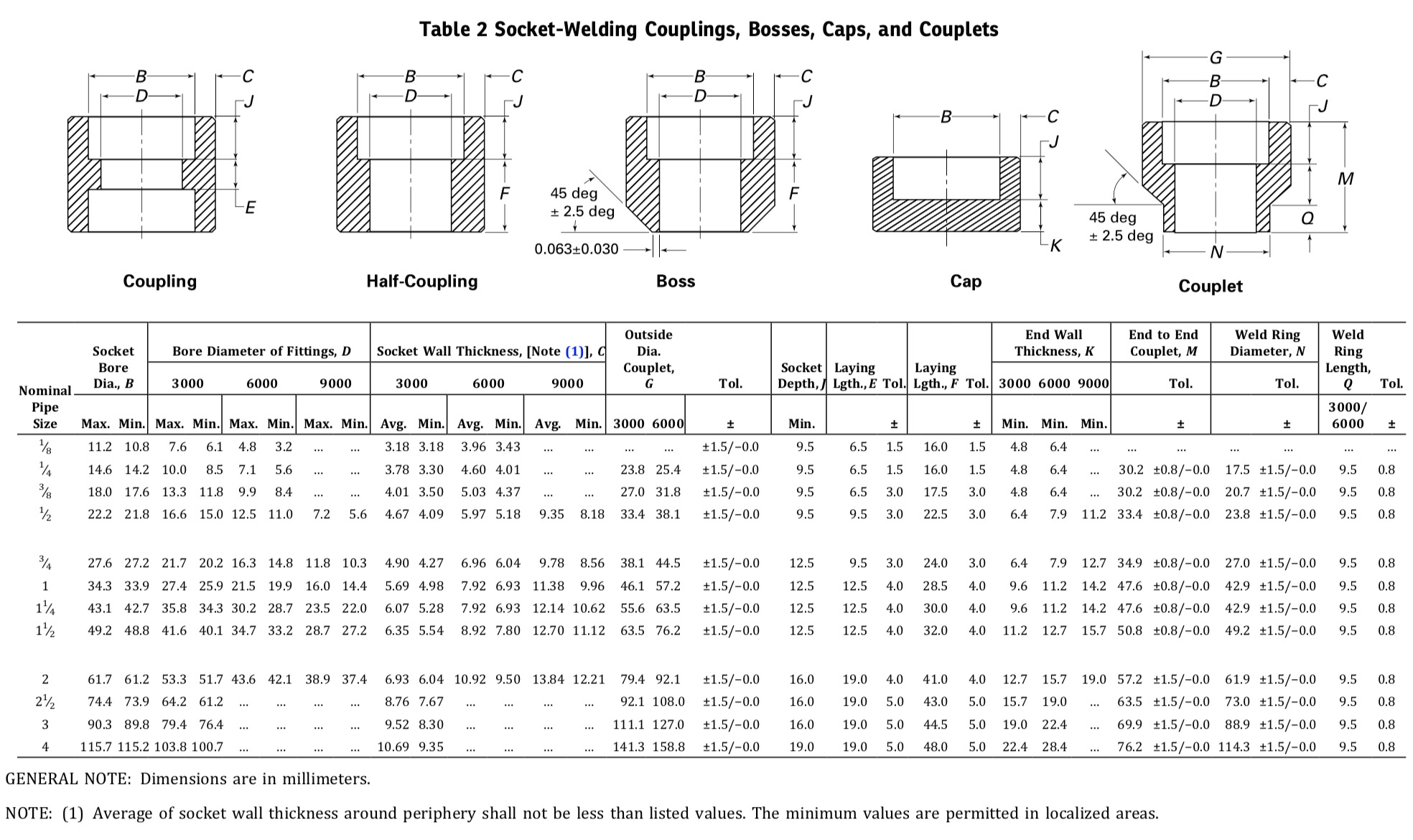

Dimension：ASME 16.11, MSS SP-79, 83, 95, 97 and BS3799
Pressure Rating：3000LBS, 6000LBS, 9000LBS
Size：NPS 1/8''~ 4'' (DN6 ~ DN100)
Surface: Oiled / hot dip galvanized, Pickling white, etc.
ASME B16.11 socket welding couplet is a welded branch plate that is welded to the main pipe and connected to the branch pipe, either by welding or threaded connection. It is considered the most popular in the group, and is often classified as a butt-welding connection (BW butt-welding). This classification refers to the beveled outlet that is welded during installation to the branch pipe. It is highly suitable for replacing tees with reinforced connections on 90-degree branch pipes, as this connection protects the branch pipe by reducing stress concentrations caused by the shape and size of the branch pipe. The beveled end allows for easy installation on previously cut main pipes and branch pipes through butt-welding, with the internal or nominal diameter of the branch pipe usually being less than or equal to the diameter of the welded branch plate. The main application is commonly found in hot well and instrument connections.
Meanwhile,we manufacture & supply different types of socket welding pipe fittings according to ASME B16.11 standard as follows:
ASME B16.11 socket welding 45° elbows,socket welding 90° elbows
ASME B16.11 socket welding tees
ASME B16.11 socket welding crosses
ASME B16.11 socket welding bosses
ASME B16.11 socket welding caps
ASME B16.11 socket welding couplet
ASME B16.11 socket welding full coupling,socket welding half coupling
