Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 48″NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Stainless Steel:
ASTM A403 WP316/316L, ASTM A403 SA/ A 774 WP-S,WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel:
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werksto No. 1.4462
Carbon Steel :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel: ASTM A420 WPL3, A420 WPL6
Nickel Alloy :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

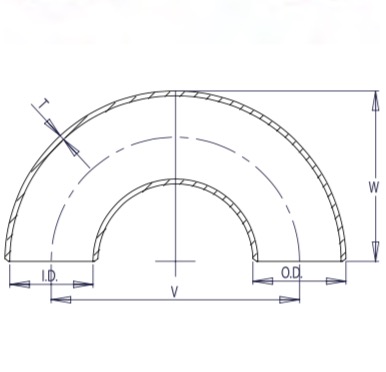

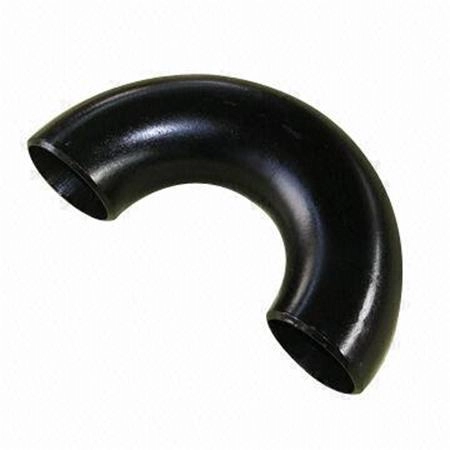

180 Degree Steel Elbow
180 Degree steel elbow helps change direction at 180 degrees, since it usually results in low pressure. Its application is limited to minimal deposition and low turbulence system.
Classified by Connection Types
As per the connection mode, elbow could be classified by butt welded elbow, socket welded elbow and threaded elbow.
Type: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;
26” - 96” ( DN 660 - DN 2438.4) for Welded.
Wall Thickness: SCH 5S - XXS
Style: Long Radius (LR) / Short Radius (SR)
Angle: 45 Degree, 90 Degree, 180 Degree or in specified degree.
Standard: ASME/ANSI B16.9, ASME B16.28, MSS SP43, DIN2605,
DIN2617, DIN2516, JISB2311, etc.
Material: Carbon steel, Low Temperature Carbon Steel,
High Yield Carbon Steel, Alloy Steel, Stainless Steel.
C.S: ASTM/ASME A234 WPB / WPC, ST37.0, ST35.8, ST45.8;
LTCS: A420 WPL6, ASTM/ASME A402 WPL3 / WPL6;
HYCS: ASTM/ASME A860 WPHY 42 / 46 / 52 / 60 / 65 / 70;
AS: ASTM/ASME A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP9
/ WP91 / 15Mo3 / 15CrMoV / 35CrMoV;
SS: ASTM/ASME A403 WP304 / 304L / 304H / 304LN / 304N /
316L / 316H 321H / 347H;
Application: Can be widely used in the field of Chemical,
Construction, Water Supply, Drainage, Oil,
Light & Heavy Industries, Freezing, Sanitation,
Fire Control, Electric Power, Aerospace, shipbuilding, etc.
