Product Features:

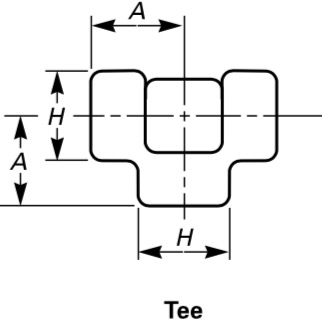

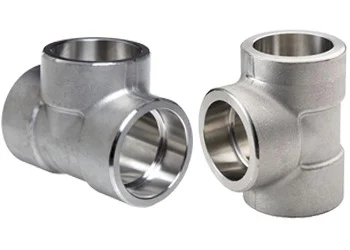

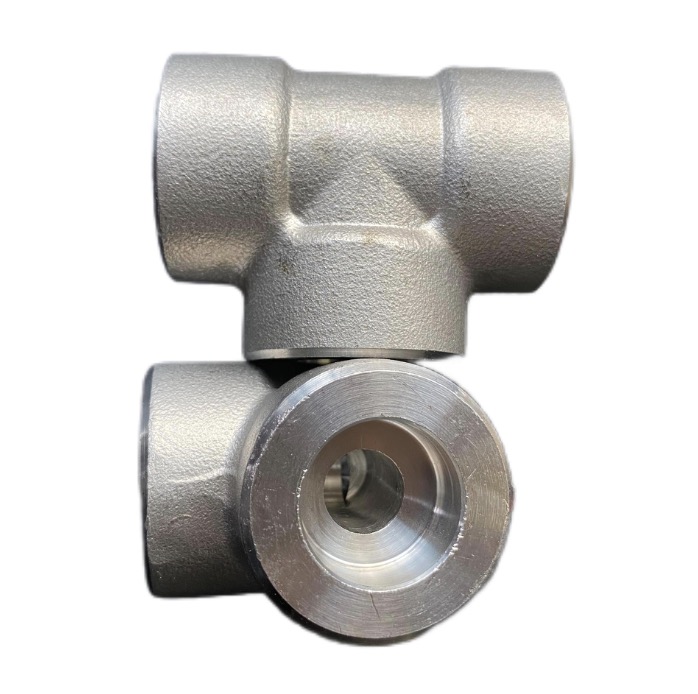

Tees are used to connect three pipe sections. The fitting has two parallel side ends as well as an end that extends perpendicular from the midsection of the fitting.
Materials:A105 - The standard forged carbon steel piping components for ambient and high temperature / pressure systems.
ASME B16.11-2016
PRESSURE RATINGS

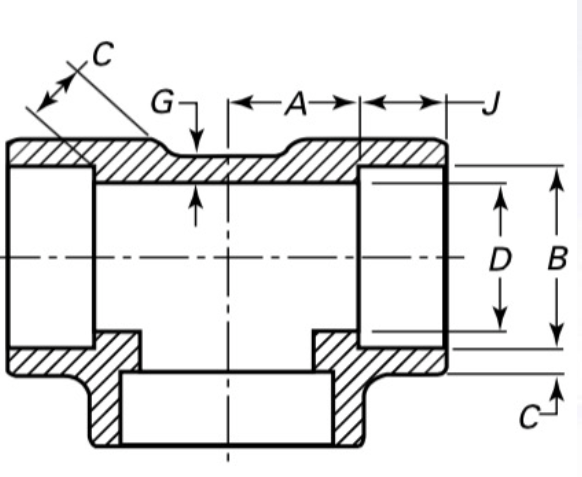

Fittings under this Standard shall be designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket end fittings.
Precise dimensions are not always specified in ASME B16.11, however minimum & maximum dimensions are.
Material Specifications:
Manufactured, tested and certified in accordance with ASME 3A-105N & ASTM A105N Normalized
Forged carbon steel pipe fitting dimensions listed are either minimums or set by the factory per ASME B16.11
NPT threads on forged steel pipe fittings conform to ASME B1.20.1
Forged carbon steel socket weld inserts conform to MSS-SP-79
Forged carbon steel unions conform to MSS-SP-83
Forged carbon steel outlet fittings conform to MSS-SP-97
End Connecton: NPT Threaded - ASME B1.20.1
Applications: Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water
Manufactured to ASME B16.11, ASTM A182 Standard
