Type: Seamless / Welded / Fabricated / Forged
Range: ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS
Dimensions: ANSI/ASME B16.9, B16.28, MSS-SP-43
ASME B16.28 Cap Material: Carbon steel,Stainless steel,Alloy steel:ASTM A105,A182 F5,F9,F11,F12,F22,A234 WPB,WP5,WP9,WP11,WP12,WP22,WP91,A403 WP304L,WP316L,WP321,ASTM S420 WPL6,ASTM A860 WPHY42,WPHY52,WPHY60,WPHY65,WPHY70,JIS G3454,BS EN10253,S235,S355,DIN ST37,ST52,GOST CT20.
Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report.
ANSI / ASME B16.11 Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded pipe fittings and 3000, 6000, and 9000 for socket weld fitting. B16.11 is to be used in conjunction with equipment described in other volumes of the ASME B16 series of standards as well as with other ASME standards, such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.
Carbon steel pipe cap is also known as head cap which is used to weld or install on the male thread of end of pipes for blocking the pipelines. It has same function as plug and blind flange.
Steel pipelines includes pipes, fittings, flanges, gaskets, valves, bolts and nuts. It is important to select proper piping material to ensure system safety and durability at appropriate cost.
We can produce pipe fittings & flanges in customized size as per customer required. Usually stock the dimensions in accordance with standards of ASME B16.9, B16.5, B16.11 & BS3799. Our goods are good for waterproof the connections to avoid leakage, and laso can work high pressure and temperature situation.
Types of Carbon Stell Pipe CAP
1. Carbon Steel Bult Weld Cap

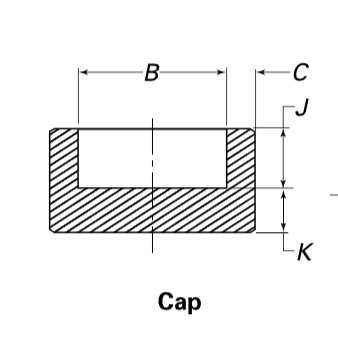

2. Stainless Steel Socket Weld Cap
3. Carbon Steel Threaded Ppie Cap
ASME B16.9 End Cap Dimensions
ANSI / ASME B16.9 Standard covers overall dimensions, tolerances, ratings, testing, and markings for wrought factory-made butt-welding fittings in sizes NPS 1/2 through 48 (DN 15 through 1200) and thickness Schedule 10, 20, 30, STD, 40, 60, XS, 80, 100,120,140,160, XXS.
ASME B16.28 Cap Schedule: SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,etc.
ASME B16.28 Cap Size: DN15-DN900.ASME B16.28 usually use the size is 3inch.
ASME B16.28 Cap Material: ASTM A105,A182 F5,F9,F11,F12,F22,A234 WPB,WP5,WP9,WP11,WP12,WP22,WP91,A403 WP304L,WP316L,WP321,ASTM S420 WPL6,ASTM A860 WPHY42,WPHY52,WPHY60,WPHY65,WPHY70,JIS G3454,BS EN10253,S235,S355,DIN ST37,ST52,GOST CT20.
