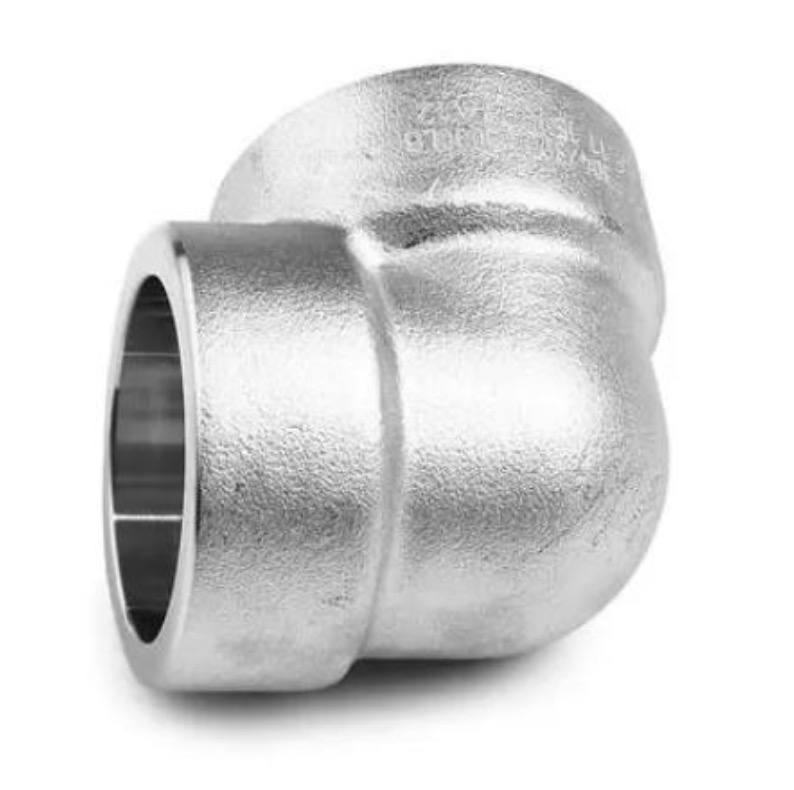

Forged Fittings Socket Weld 90°/45° Elbow MATERIAL & GRADES :
Stainless Steel Socket Weld 90° Elbow : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel Socket Weld 90° Elbow : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Alloy Steel Socket Weld 90° Elbow : ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Duplex Steel Socket Weld 90° Elbow : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205
Super Duplex Socket Weld 90° Elbow : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S32750, S32950
Nickel Alloy Socket Weld 90° Elbow : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30).
Low Temperature Carbon Steel Socket Weld 90° Elbow : ASTM/ASME A420 SA/420 WPL3, WPL6
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Forged Elbow, 45/90 Deg Elbow

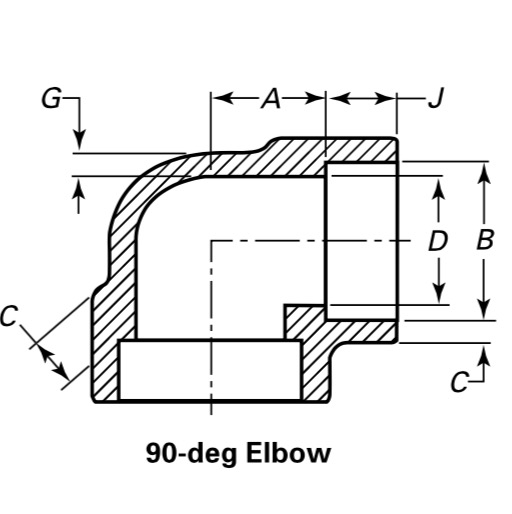

ASME B16.11 Forged Socket Weld 90 Deg Elbow Available Types
Forged Pipe fittings offered in different choices such as elbow, bushing, tee, coupling, nipple and union. It is available in different size, structure and class with different materials such as Stainless steel, duplex steel, alloy steel and carbon steel. JF engineering is the ebst supplier of 45/90 Degree elbow forged fittings that are designed under the expert guidance. We are highly experienced company in ANSI/ASME B16.11 forged fittings and ensure quality of each product.
90 degree elbow has varieties of features such as reliability, durability and dimensional precision. There are lots of advantages of this forged elbow that are easy to install, rugged and corrosion resistant. We are involved in providing a widespread range of forged elbows in different sizes and thicknesses. We are the best in offering different types of elbows such as forged 90 degree elbow, forged 45 deg elbow and forged 180 deg elbow. These elbows used in various industries like chemical industry, sugar mill, fat & fertilizer and distilleries.
Socket screw elbow, also known as wire buckle elbow, is a pipe fitting that changes the direction of the pipeline in the piping system. According to the Angle, there are 45° and 90°, in addition, according to the engineering needs also include 60° and other abnormal Angle elbow. Manufacturers of screw elbow materials are cast iron, stainless steel, alloy steel, calcined cast iron, carbon steel, non-ferrous metals and plastics.
The socket screw elbow is composed of a screw, a bending part, etc., which is characterized by a threaded groove on the screw. In the piping system, the threaded elbow is a pipe fitting that changes the direction of the pipeline.
Application field of socket screw elbow: mainly suitable for petrochemical industry, medicine and health, electric power, aerospace, fire protection, metallurgy, shipbuilding, gas, nuclear power, and
environmental protection and other requirements of high pressure, size precision and other sectors and fields.
Points for attention when using elbow of socket thread:
Marking & Packing
Our products like forged socket weld pipe fitting 90° Elbow are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All forged socket weld pipe fitting 90° Elbow are marked with Trademark (Company’s LOGO), Grade, Size and Lot No. On requests we can do custom marking on our products.
Test Certificates
Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, Raw Materials Certificate, NABL approved Lab Test Report, 100% Radiography Test Report, Third Party Inspection Report etc.
