Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 48″NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form: Eccentric reducer, Pipe Reducers, Pipe Eccentric Reducers, Fitting Eccentric Reducers.
Stainless Steel Buttweld Eccentric Reducer:
ASTM A403 WP316/316L, ASTM A403 SA/ A 774 WP-S,WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Eccentric Reducer:
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werksto No. 1.4462
Carbon Steel Buttweld Eccentric Reducer :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Eccentric Reducer: ASTM A420 WPL3, A420 WPL6
Nickel Alloy Buttweld Eccentric Reducer :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
| Specifications | ASME B16.9 Reducer |
|---|---|
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Size Range | Seamless ButtWeld Fitting: From 1/2″ - 10″ Welded ButtWeld Fitting: From 1/2″ - 48″ |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Size Ranges | ½” NB to 24″ NB in Schedule 10s, 40s, 80s, 160s, XXS. |
| Types | Welded | Seamless | Fabricated |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
The cone-shaped concentric pipe reducer means the pipes have matched center lines, and the eccentric reducer has mis-matched center lines. Both of these have a consequence regarding flow. Most reducers are going to be concentric. Eccentric reducers are used when the pipes have to maintain the same top or bottom level. Eccentric reducers are frequently used to avoid trapping air within the system, so they are often used when both air and liquids may be flowing together.

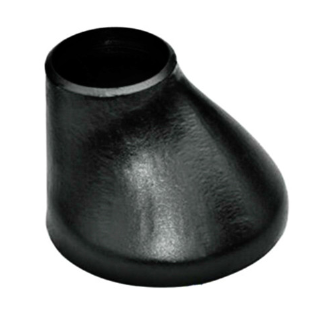

An eccentric reducer is a fitting used in piping systems between two pipes of different diameters. The same fitting can be used in reverse as an eccentric increaser or expander. They are used where the diameter of the pipe on the upstream side of the fitting (where flow is coming from) is larger than the downstream side, and where there is a danger that vapour may accumulate. Unlike a concentric reducer, which resembles a cone, eccentric reducers have an edge that is parallel to the connecting pipe, referred to as the flat side. This parallel edge results in the two pipes having offset center lines. Because eccentric reducers are asymmetrical, they create asymmetrical flow conditions; flow is faster along the angled side, resulting in increased pressure.
1. Conforms to ASME B16.9 & ASTM A234 WPB & etc.
2. All dimensions are in inches.
3. All weights are in pounds and approximated or estimated.
4. This size and thickness does not correspond to any pipe schedule number.
5. In accordance with B16.9. Special Fittings Paragraph 4.4.2
